Flat Rooflight System
The Flat Rooflight System suits most flat roof types and coverings, offering a sleek and watertight design. Minimal glazing bars maximise daylight and create a frameless look from inside. Available in custom sizes and dual colours, the system is secure, easy to assemble, and compatible with both stepped and flush glazing units.
Engineered to meet the demands of modern living, the folding sliding door and corner systems feature a sleek look coupled with smooth running and outstanding durability. The corner solution also enables that sought-after indoor/outdoor lifestyle, enabling properties to maximise the use of their outside space.
- Streamlined design: Narrow sightlines and minimal glazing bars ensure an elegant appearance.
- Removable PVC cassette: Only the cassette will need replacing if the glass is broken, not the complete unit.
- Thermal efficiency: The flat rooflight can achieve U values of up to 1.6 W/m2K*.
- Fabricator-friendly: Easy to assemble on-site and efficient to transport thanks to its narrow profiles.

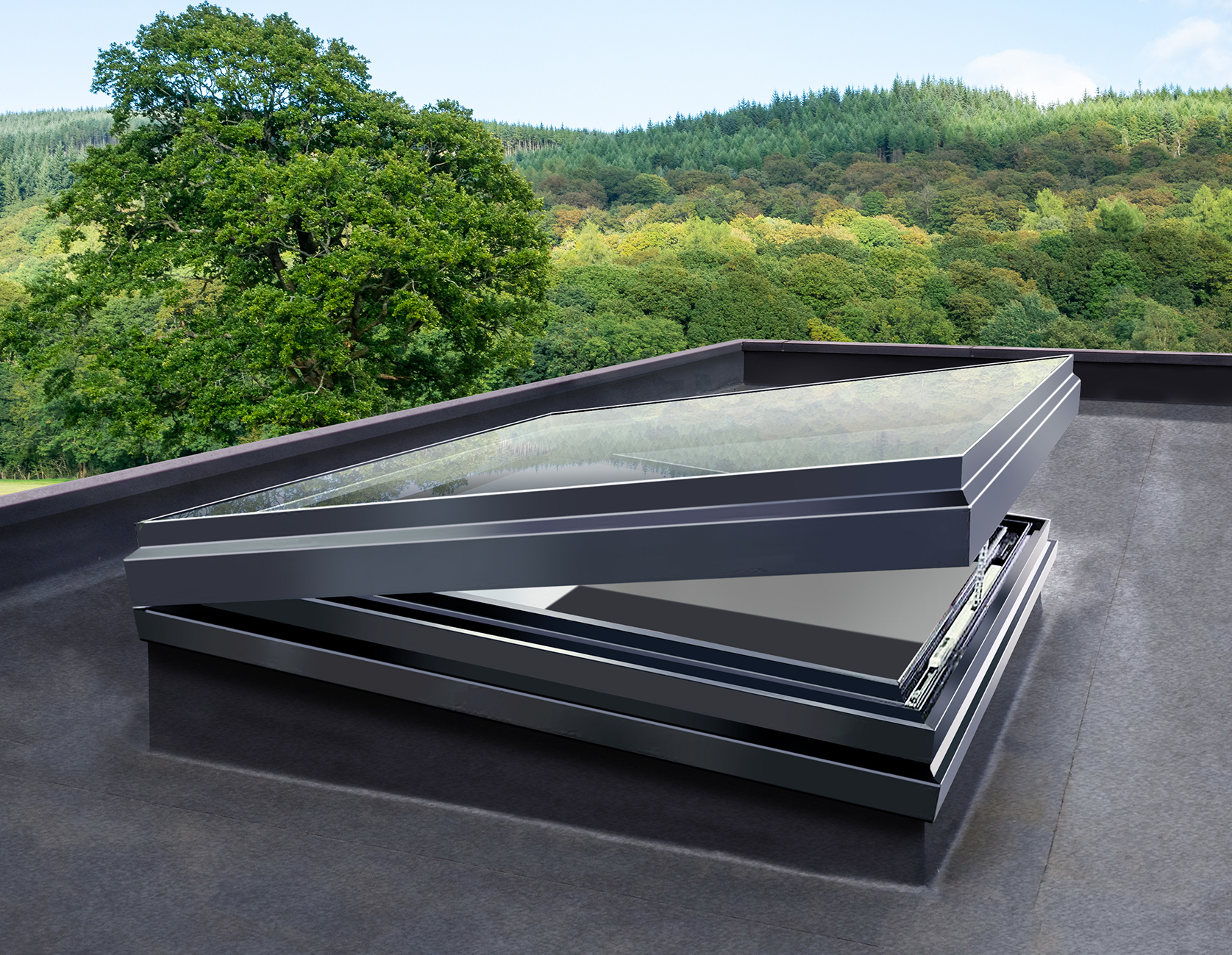

- Functional options: Choose between the fixed, ventilation and egress rooflights to suit your desired application.
* Values based on fixed version with 1.0 W/m2K IGU centre pane, 1750 mm x 1750 mm.
Design options
With a multitude of design options and surface finishes, the flat rooflight can be adapted to fit any design requirement or preference.
- Surface finishes: Mill finish, etched and anodised options are available with single and dual-colour surface finishes.

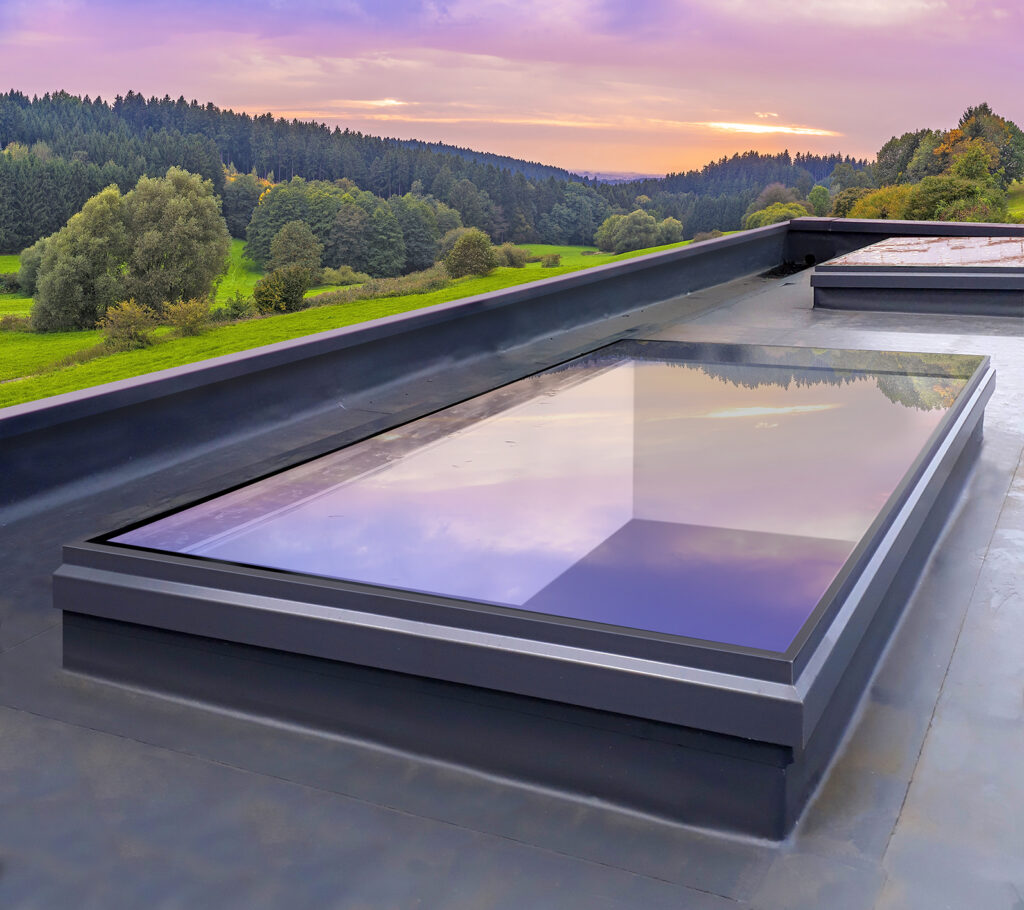

- Variety of configurations: Fixed standard or walk-on versions for design flexibility.
- Rafter bar option: Ideal for longer runs of fixed glazing.
- Stepped edge option: To protect against thermal fracture to the inner pane.
- Glazing options: Double or triple glazed with corresponding glass thicknesses of 28-31 mm and 44-48 mm.
